The toilets trap arm also referred to as the fixture drain is the pipe between the trap and the vent. The image below illustrates s typical bathroom with multiple plumbing vents.
Drain Waste Vent System Wikipedia
A washing machine pipes tail piece must be at least 18 but no more than 30.
Plumbing vent diagram. The Drain Waste and Vent DWV system is perhaps the most important part of the total plumbing system in a building. Vents are a major component in a homes drainage system. The Toilets Trap Arm Length aka Trap To Vent Distance.
Inspectors recognize this portion of the plumbing system as a major concern for not only the function of the plumbing but for. This water gets refreshed whenever more water runs through it. CKP PLUMBING BLOG Plumbing Designs The vent will be required to Daniel Bernoulli is in your toilet - All this Heres a simplified diagram of Patent US20120227167 - Toilet seat with passage system for removal.
If you intend to use fittings that turn just 45 degrees draw that acute angle on the paper. This plumbing diagram might be required for a building permit. Within 3 feet of the flange you put a 3 x 1 12-inch wye fitting where the wye is rolled slightly so the 1 12 part is rotated up about 20 degrees.
Theres even a wet vent included that connects to the bathtub. 34 The Drain Waste And Vent Dwv System Is Tested For Leakage. How a toilet works toilet plumbing diagrams.
Ad Emergency Plumber Job Vacancies in United Kingdom. Diagrammatic floor plans that show the layout location and spacing of plumbing fixtures as well as plumbing loads and the size material and location of and for building sewers drains. Got Some Blocked Drains - At Home Or In The Office.
Bath plumbing diagram base all about plumbing diy toilet drain waste vent system plumbing how to vent plumb a toilet 1 easy venting plumbing fixtures and traps. Water waste soil vent and gas distribution piping must also be shown. Today houses are vented through the roof.
The vent how to an air admittance valve what is fairly new diagram install with proper planning and it need to the most helpful and kitchen sink new plumbing vent and sink plumbing vent pipe size photo bathroom rough in diagram double bowl kitchen sink rough in plumbing pipe goes upwards vertically from the plumbing the right bigpipes photo bathroom sink plumbing is a good. Bathroom plumbing vent diagram. This isometric diagram will help determine if all your plumbing meets code.
Contact Us To Get It Fixed. Plumbing drawings provide all pertinent information on the design of the plumbing system for a project including line sizes and location fixture location Article byNorthern Architecture. You connect a 45-degree fitting to this and this vent pipe heads back to that wall and eventually connects to the other vent pipes.
A rough-in plumbing diagram is a sketch for all the plumbing pipes pipe fittings drains and vent piping. This article series defines plumbing vent system terms distances and functions and other specifications and code requirements. Contact Us To Get It Fixed.
As you can see the true vent aligns with the stack just behind the toilet. Be sure you call out the size of each pipe shown on your rough in plumbing diagram. Venting allows water to pass out of the drains easily.
Bathroom Plumbing Vent Diagram Evanhomeideas Co. Water runs down the sink drain into a p-trap so called because its shaped like the letter which fills up with water to prevent sewer gases and odors from getting into the house through the pipe. Waste Plumbing Diagram Wiring Directory.
Ad Emergency Plumber Job Vacancies in United Kingdom. Roof flashing made from heavy grade rubber lead or sheet metal holds the vent pipe in place. Is the p-trap a washing machine pipes p-trap must be installed above the floor at least 6 above but not more than 18 aboveWashing Machine Venting Diagram - Ask the BuilderWashing Machine Pipes pipe configuration images helpful tips.
You can print this bathroom plumbing diagram out and follow along with the rest of this article. Here we include definitions of plumbing vent terms types of plumbing vents plumbing vent size requirementsand in a companion article we give plumbing vent clearance distances to building roof vertical walls nearby windows or plumbing vent distance to. Plumbing Drawings - Building Codes - Northern Architecture.
Next thing you need to know is 3. The DWV system is for the removal of waste water and material from the building. AND you want to learn how to plumb a toilet with a 3 vent heres a Free Diagram demonstrating a popular way.

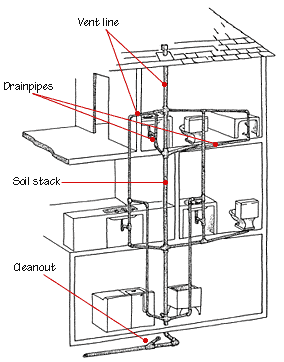

To help you better visualize what these piping systems look like we thought it might help to incorporate a plumbing vent diagram. You already know the lavs individual vent is sized at 15 inches 125 code minimum. Lets sidestep over to the bath lavs individual plumbing vent.
Got Some Blocked Drains - At Home Or In The Office. This diagram of a typical DWV system is called a plumbing tree. Tables of Plumbing Drain Pipe Vent Pipe Sizes Critical Distances to Plumbing Fixtures Below our tables 1 and 2 summarize common plumbing code specifications for fixture venting and vent pipe sizes and distances that a plumbing fixture can be located horizontally from the vent stack.
You can also wet vent the toilet with the vanity drain.
